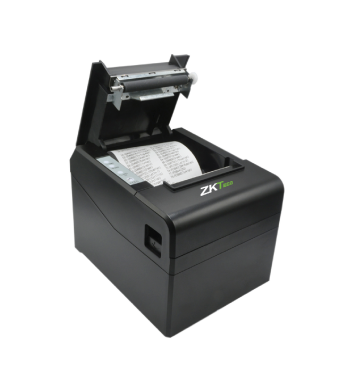

ZKP8001
  • Low noise and high-speed printing
  • Support cash drawer driver
  • Easy for paper installation
  • Easy maintenance and excellent structure
  • Low noise and high-speed printing
  • Support cash drawer driver
  • Easy for paper installation, Easy maintenance and excellent structure
  • Low power consumption and low operating costs (No Ribbons or Ink cartridges)
  • Built-in data buffers (capable of receiving print data while printing)
  • Characters can be amplified, printed in bold optionally, and line spacing printing can be adjusted
  • Support different density bitmap graphics printing
  • Support NV image downloading and printing
  • High-speed printing using embedded soft font for all interfaces
  • Compatible with ESC/POS print instruction set, optional columns and font (adjusted by DIP switch)

Model

ZKP8001

Printing


Print Method Direct Thermal Line Printing
Print Speed 300mm/sec
Print Command Compatible with ESC/POS
TPH 100 km

Interface


Optional Serial/USB/Ethernet/Bluetooth/WIFI

Character


Font A 12*24dots,1.5(W)*3.0(H)mm
Font B 9*17dots,1.1(W)*2.1(H)mm
Chinese 24*24dots,3.0(W)*3.0(H)mm
Alphanumeric ASCII 12×24dots

Barcode


1D UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODABAR/ITF/CODE39/
CODE93/CODE128
2D QR CODE

Power Supply


Output DC 24V/2.5A
Cash drawer DC 24V/1A
Paper
Paper Type Thermal Receipt Paper
Paper Width 79.5±0.5mm( Print Width 72mm )
Paper Thickness 0.060~0.08mm
Roll Diameter 80mm
Paper Cutter Auto Cutter: Full or Partial cut

Physical Environment


Temperature 0-45℃
Contrast Humidity 10%-80%RH
Weight 2kg

Dimension

190*145*145mm(L*W*H)

Software


Driver Win 2000 , Win 2003 , Win XP , Win Vista , Win 7 ,Win 8 ,Win 10, Linux
Compatible wit EPSON , SAMSUNG



ZKP8001 Datasheet

0.12 Mb Data Sheet
2019-05-07

ZKP8001 User Manual

0.96 Mb User Manual
2019-05-07
