Secure and Spacious Ultra Wide Lane Design for Motorcycle Access

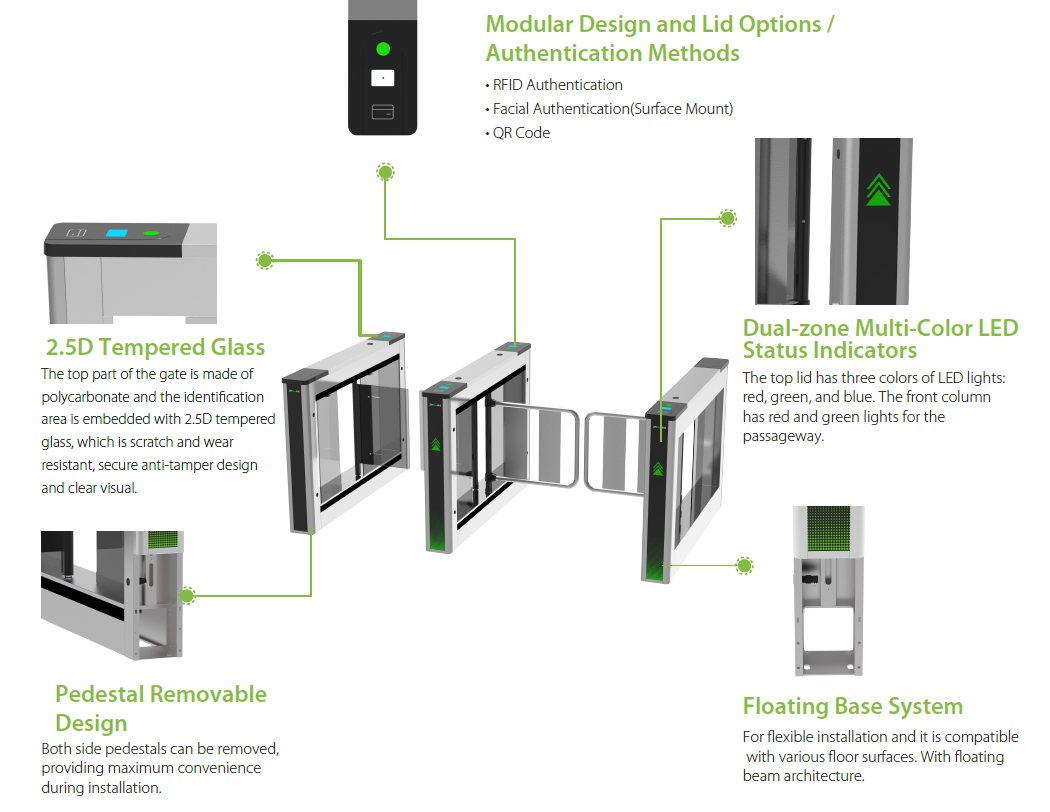

- RFID Authentication
- Facial Authentication (Surface Mount)
- QR Code
- 2.5D Tempered Glass
- Dual-zone Multi-Color LED Status Indicators

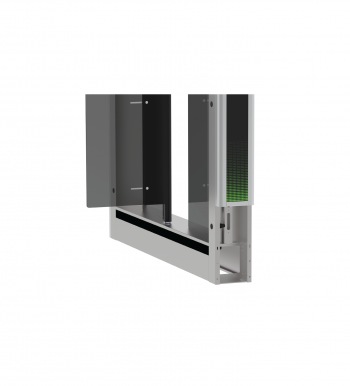

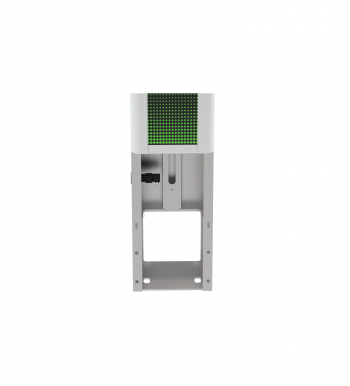

- Pedestal Removable Design
- Floating Base System
- Durability: IP65 protection rating

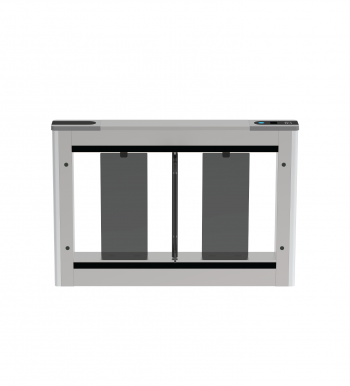

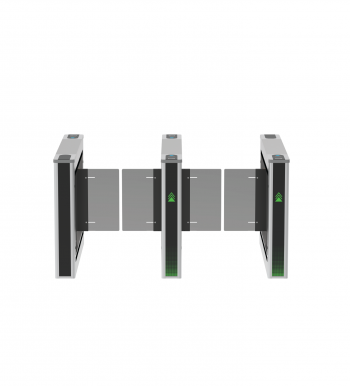

Unveiling the ZKTeco Saturn-S2000 , an innovative swing barrier turnstile designed for an unparalleled passage experience. The Saturn-S2000 offers two models (S2000 and S2200). Its chassis is mainly made from stainless steel material(SUS304), providing an IP56 protection rating that ensures it can withstand water and dust. Also, Saturn-S2000 is equipped with a clutch to enhance security.
The Saturn-S2000 has been upgraded with a notable feature: a standard 12 pairs of infrared sensors (expandable to 18 pairs) with integrated dual-zone pinch protection. It ensures enhanced safety and improved obstacle detection. Also, the authentication area is enhanced with 2.5D tempered glass for scratch resistance.

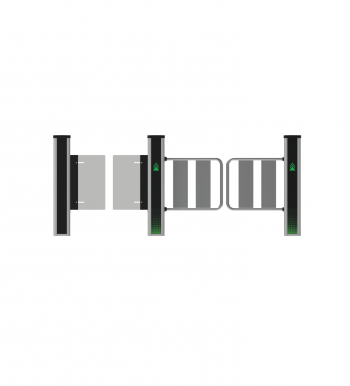

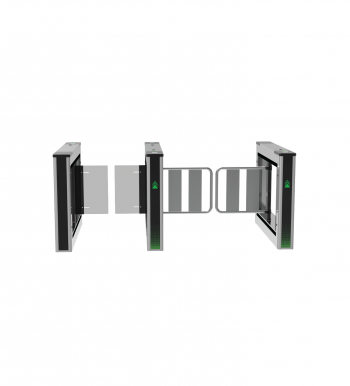

Saturn-S2000 maintains its multi-authentication flexibility as before, with facial, QR code and RFID card verification. Additionally, Saturn-S2000 features an expanded 900-1200mm channel width with stainless steel swing barrier, specifically engineered to accommodate both pedestrians and two-wheeled motorcycles. The robust design maintains security while allowing smooth transit for authorized vehicles.
| Model Name | Saturn-S2000 Saturn-S2200 |
| Audio Indicator | Internal speaker |

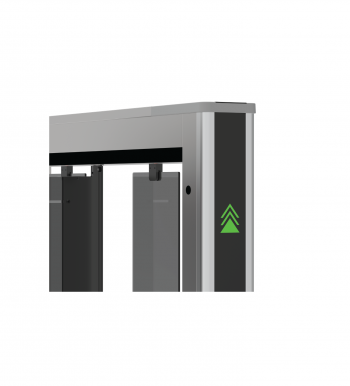

| Visual Indicator | Top LED indicator: Blue=Door closed/stand by Green=Door opening Red=Door closing/alarm Side LED indicator: Green=Lane available Red=Lane unavailable |
| Display | Display |

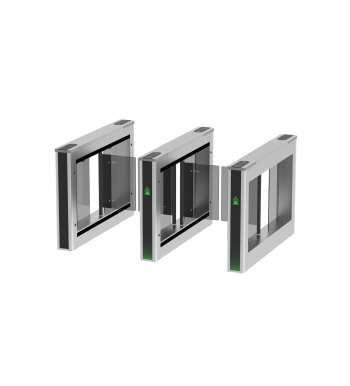

| Lane Type | Saturn-S2000: Single lane Saturn-S2200: Dual Swing (for additional lane) |
| Lane Width | 600~900mm (Optional) (Acrylic) Maximum 1200mm (Optional) (Stainless steel) (For two-wheeled motorcycle access) |
| Barrier Movement Type | Swing |

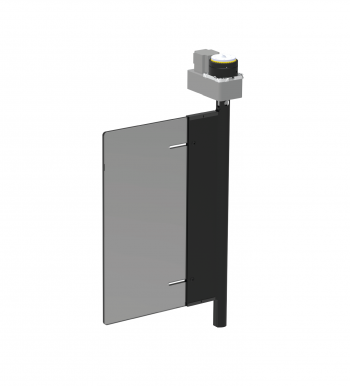

| Motor | DC brushless motor |
| Movement Speed | Average 1s per movement (Adjustable open/close timing) |
| Clutch | Equipped |
| Lid Material | Stainless steel & Polycarbonate |

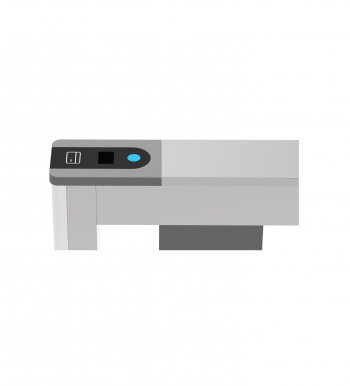

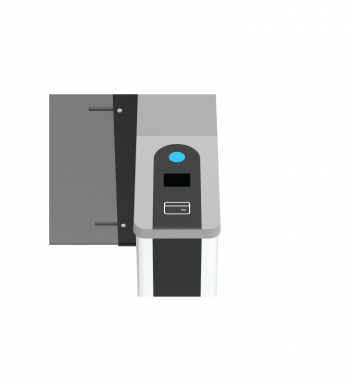

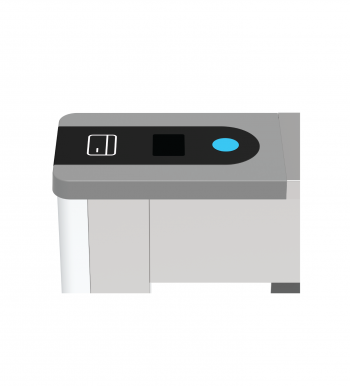

| Lid Options Authentication Methods | Streamlined under mount options: QR Code / RFID Surface mount option: Facial Authentication |
| Chassis Material | Stainless steel (SUS304) (Chassis Body) / Aluminum Alloy (Gate Column) |
| Chassis Colour | Gray (Standard) |
| Barrier Material | Light gray transparent acrylic (305*555*10mm) (standard) /Light gray transparent acrylic (380*555*10mm) (optional) When the lane width is 900-1200mm, stainless steel barriers are required. |
| IR Sensors | 12 pairs (standard) ;18 pairs (Optional) |
| Motherboard Function | System configuration, access control |
|
Motherboard Communication |
Fire alarm port (relay)*1, RS485 port*1 |
|
Controller |
Compatible with C3 / InBio Series or 3rd-party controller |
|
Credential Options
|
Under mount RFID reader: (support model: Pro ID Series, KR Series) Under mount fingerprint reader: FR1200 / FR1500S |
|
Flow Rate |
Facial Authentication: 15 passengers per minute QR Code: 30 passengers per minute RFID: 35 passengers per minute |
|
Accessibility |
Adult, children (with care), Disability (with care) |
|
Power Supply |
110V / 220V ±10% AC @50Hz/60Hz |
|
Power Rating |
20VA (Standby) 40VA (Operation) |
|
Fire Signal |
Input for voltage free contact |
|
Noise Level |
Less than 60dB |
|
MTTR |
Less than 60 minutes |
|
MCBF |
5 million |
|
Weight |
Saturn-S2000: 100Kg (Net weight); 140Kg (Gross weight) Saturn-S2200: 60Kg (Net weight); 100Kg (Gross weight) |
|
Dimension (L*W*H) |
1500*180*1020mm |
|
Dimension with Packing (L*W*H) |
Saturn-S2000: 1580 * 340 * 1270 (mm) (2pcs) Saturn-S2200: 1580 * 340 * 1270 (mm) |
|
Operating Temperature |
-30 °C to 70 °C |
|
Operating Humidity |
5% to 90% RH (Non-condensing) |
|
Certifications |
CE, FCC |
|
Ingress Protection Rating |
IP56 (water & dust proof) |
|
Supported Software |
ZKBio CVAccess / ZKBio CVSecurity (Depends on equipped access controller) |
|
Safety Features |
Voltage free contact input for fire alarm fail state automatic swing barrier open during power off |
|
Security Features |
Anti-tailgating, anti-pinch |
|
Product Delivery |
Pre-assembled |
|
Application Environment |
Indoor / outdoor (if sheltered) |
|
Site Preparation |
Flat & level finished floor (base plate in options for unfinished floor) |
|
Security Level |
Medium |
|
Emergency Mode |
Support (swing barrier open automatically) |
|
Packing Material |
Wooden |
