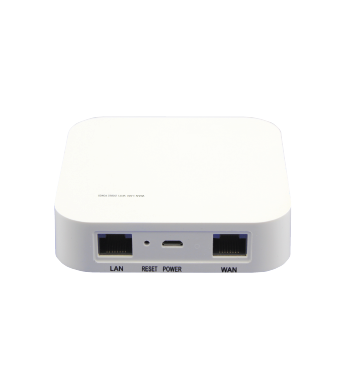

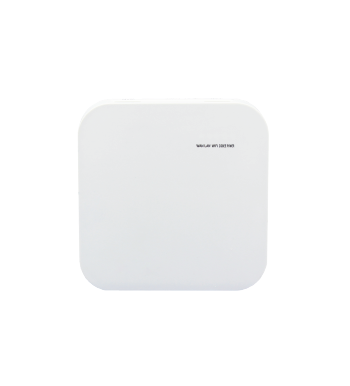

RG4100+
- Standard Zigbee HA protocol
- Multi-lock management capacity (up to 20 locks)
RG4100+ is a mini multi-functional wireless control panel that supports ZigBee wireless transmission technology. This single wireless control panel can control up to 20 door locks and enables unlimited connection thus making it especially suitable for 5-star hotels with up to several thousands of rooms.
| Dimensions (L*W*H) | 90.6 * 90.6 * 22.0 (mm) |
| Net Weight | 93 g |
| Operating Temperature | -10 ~ 55°C |
| Operating Humidity | 10% - 90% R.H. |
| Hardware Port | 2* 10/100 RJ45 Ethernet; 1* Micro USB |
| Wireless Protocol |
Wi-Fi 802.22b/g/n
802.15.4/ZigBee for wireless lock connection
|
| Wireless Type | Internal Antenna |
| Software | 3.1.5.0 |
| Capacity | Max. 20 wireless locks |
