- New firmware
- Stunning GUI
- Rock-solid stability
- Fast matching speed
- Expandable

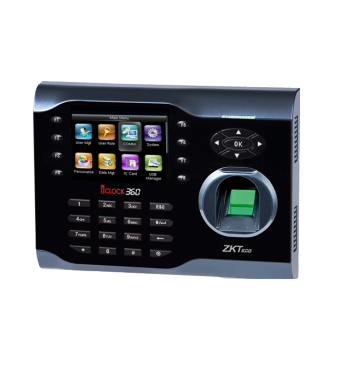

iClock360 offers unparalleled performance using an advanced algorithm for reliable, precise, and excellent matching speed. Users can easily manage data by networking the device via RS232/485, TCP/IP, and USB client.
It is the perfect solution for all kinds of installations since all the functions can still operate in a networking state. It supports data backup and retrieval to avoid the risk of accidental deletion.
Remarkable User Experience
- Intuitive and stunning UI designed with the most popular and internationalized factor.
- Interface operation adopts modularized hierarchical design. Simple, better and logical.
- Faster matching speed: less than 1 second.
Enhanced Features and Performance
- User validity settings.
- Data backup and retrieve.
- Advanced User ID consisting of letters and numbers.
- Chip encryption for firmware protection.
- More flexible menu configuration: double line text display.
Excellent Expandability
- Easy to extend functions and customize customers demand.
Technical Specifications |
|
|
|
Fingerprint Capacity |
8000 |
|
|
ID Card Capacity |
10,000 (Optional) |
|
|
Record Capacity |
200,000 |
|
|
Display |
3.5-inch Screen |
|
|
Communication |
TCP/IP, RS232/485, USB (host & Client) |
|
|
Standard Functions |
Workcode, SMS, DST, Scheduled-bell, Self-Service Query, Automatic Status |
|
|
Optional Functions |
ID/Mifare/HID, Webserver, and Wi-Fi |
|
|
Software |
BioTime |
|
|
Power Supply |
DC 12V 1.5A |
|
|
Verification Speed |
≤ 1 sec |
|
|
Operating Temp. |
0°C- 45°C |
|
|
Operating Humidity |
20%-80% |
|
|
Dimension |
192×140×41mm (Length×Width×Thickness) |
|
|
Gross Weight |
1.05 kg |
|
';
Back Plate
Power adapter
RJ45 to RS485 2 pin cable
Screw driver
Screws
