- High quality electrical components
- Barriers retract automatically during emergencies
- ZKTeco provides true plug&play turnstiles with the lowest possible total cost of ownership in the industry

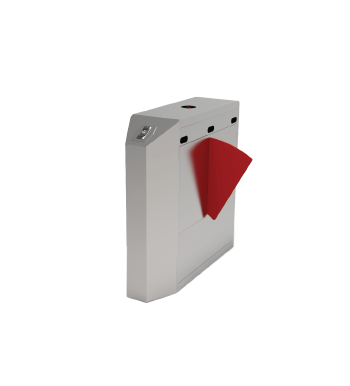

The FBL2200 Pro is a Flap Barrier Turnstile for additional Lane series designed for smooth and silent operation and draws very little power. It’s made of stainless steel which makes FBL2200 Pro highly durable.
FBL2200 Pro barriers are normally held in a locked position, thus denying access to the secured side. Upon FBL2200 Pro’s reader (RFID and/or fingerprint) positively recognizing a user’s valid access card or fingerprint, its barriers retract upward automatically, thus allowing users passage to the secured side.
During emergencies the barriers automatically retract upward, thereby ensuring users FAST unencumbered exit to safety. A capacitor board for power outage safety can be installed for retracting the barrier automatically. FBL2200 Pro provides both security and convenient space, all in a very durable and elegant compact design.
- SUS304 stainless steel casework ensure long-lasting durability
- High-quality electrical components
- Barriers retract automatically during power outage with capacitor board installed
- All smooth finish. No exposed screws.
- Ergonomic design makes card and fingerprint authentication fast & simple for users.
- FBL2200 Pro series ships already integrated with our customers’ preference for either card or fingerprint access control reader. This greatly reduces installation time & expense.
- FBL2200 Pro series and associated access control readers are all factory-tested prior to shipping.
- ZKTeco provides true plug&play turnstiles with the lowest possible total cost of ownership in the industry.
- LCD on the flap barrier contrl board, easy operation.
|
Power requirements |
AC 100 ~ 120V/200 ~ 240V, 50/60Hz |
|
|
Working temperature |
-28℃ ~ 60℃ |
|
|
Working humidity |
5% ~ 80% |
|
|
Working environment |
Indoor/outdoor (if sheltered) |
|
|
Speed of throughput |
RFID |
Maximum 30/ minute |
|
Fingerprint |
Maximum 25/ minute |
|
|
Lane width(mm) |
600 |
|
|
Footprint(mm*mm) |
840*1150 |
|
|

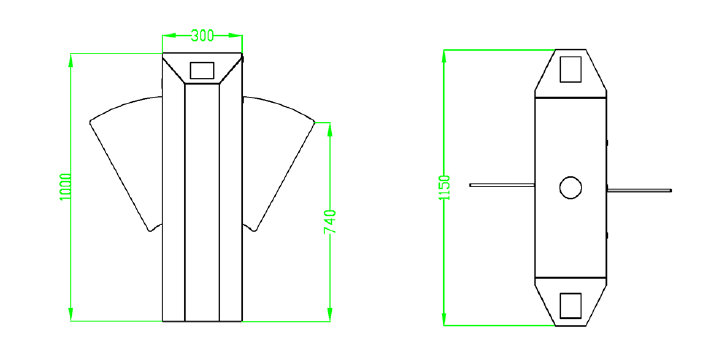

Dimensions(mm) |
L=1150,W=300,H=1000 |
|
|
Dimension with packing(mm) |
L=1480,W=410,H=1110 |
|
|
Net weight(kg) |
69 |
|
|
Weight with packing(kg) |
98 |
|
|
LED indicator |
Y |
|
|
Cabinet material |
SUS304 Stainless Steel |
|
|
Lid material |
SUS304 Stainless Steel |
|
|
Barrier material |
Acrylic |
|
|
Barrier movement |
Retracting |
|
|
Emergency mode |
Y |
|
|
Security level |
Medium |
|
|
MCBF |
2 million |
|
';
