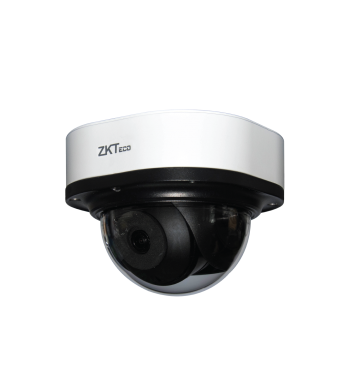

5MP BioSense Motorized Lens Dome IP Camera
- 1/2.7” 5MP CMOS Sensor
- H.265 Dual stream encoding
- High-quality optical lens: 3.6-10.8mm
- 30m IR effective range
- Built-in PoE
- Built-in micro-SD card slot (support max. 256GB)
- IP67 metal casing & IK10
BioSense Series IP Camera is the front-end of intelligent video surveillance solution released by ZKTeco based on the Deep-Learning algorithm and Computer Vision technology.
By using advanced and powerful CPU,couple with the embedded intelligent classification algorithm based on computer vision technology, the BioSense IP Cameras can accurately detect and recognize 3 key types of target: human, vehicles and objects, meanwhile effectively filter out the other useless objects such as: animals, leaves, shadows, and rain, etc to reduce the false alarms, and more focusing on the important alarms.
The BioSense IP Camera can greatly help to improve the efficiency and safety of the entire video surveillance system, can be widely used in different scenario such as smart school, office, industrial park, community, public security, etc.
H.265 HEVC
- H.265 is an evolutionary optimization of the traditional H.264, it includes a series of encoding strategy such as ROI, smart 2D/3D noise reduction, etc. Delivering high quality video with up to 70% lower bandwidth.
IVA (Intelligent Video Analytics)
- The BioSense IP Cameras support multiple intelligent video analytic functions: Target Counting, Object Lost/Left, and the Line Crossing, Area detection, Smart Motion Detection supports human and vehicle targets classification.
True WDR
- Powered by ZKTeco’s powerful ISP algorithm and high quality sensor, the BioSense Series IP Cameras are built-in with true wide dynamic range feature, can present excellent picture images at extreme contrast lighting environment.
ANR (Only for SD card models)
- While the connection lost between IPC and NVR, the video will be saved in SD card. The saved video will be auto replenished to NVR when network recovers to avoid any video lost.
Protection
- With precise mechanical and rugged metal casing design, the BioSense Series IP Cameras can stand against water and dust with industrial IP67 rank, and support to work at variety of harsh outdoor environments such as temperature range -30°C to +60 °C,etc.
CAMERA |
|
| Model | DL-855P28B-S8-S |
| Image Sensor | 1/2.7” 5MP CMOS |
| Max.Resolution | 2592(H)*1944(V) |
| ROM | 128MB |
| RAM | 256MB |
| Scanning System | Progressive Scan |
|
Electronic Shutter Speed |
1/5 s to 1/100,000 s |
| Min. Illumination | [email protected] ~ 3.3 (AGC on, Color) 0 lux (IR on, B&W) |
| S/N Ratio | >52dB |
| IR Range | 30 m |
|
Illuminator On/Off Control |
Auto / Manual |
|
Illuminator Number |
4*IR LED |
|
Smart IR |
Support |
|
Angle Adjustment for Installation |
Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotation: 0° ~ 360° |
|
TV System |
PAL / NTSC |
|
Image Settings |
Trigger mode, Brightness, Contrast, Saturation, Hue, Sharpness, AGC, White balance, Gamma, Backlight mode, adjustable by platform software or web browser |
|
Software Reset Default |
Support |
|
General Function |
Heartbeat, Mirror, Privacy mask, Log, Password reset |
LENS |
|
|
Lens Type |
Motorized vari-focal |
|
Lens Mount |
M22 |
|
Mount Type |
Board-in |
|
Focal Length |
3.6 ~ 10.8mm |
|
Max. Aperture |
F1.7 ~ 3.3 |
|
Optical Zoom |
3X |
|
Field of View |
FOV: 32° ~ 98° Horizontal: 108° ~ 33° Vertical: 57° ~ 18° Diagonal: 130° ~ 38° |
|
Iris Type |
Fixed |
|
Close Focus Distance |
2 m |
|
DORI Distance |
Lens: Wide / Telephoto Detect: 28.8 m / 100.4 m Observe: 19.6 m / 40.6 m Recognize: 11.0 m / 20.7 m Identify: 6.0 m / 9.2 m |
VIDEO |
|
|
Video Compression |
H.265 / H.264 |
|
Resolution |
5MP (2592*1944) / 4MP (2560*1440) / 3MP (2304*1296) / 1080P (1920*1080) / 1.3MP (1280*960) / 720P (1280*720) / D1 (704*576) / VGA (640*480) / Q720 (640*360) |
MAX VIDEO FRAME RATE |
|
|
Main Stream |
50Hz (PAL): 25fps (2592*1944,1920*1080, 1280*960, 1280*720) 60Hz (NTSC): 30fps (2592*1944,1920*1080, 1280*960, 1280*720) |
|
Sub Stream |
50Hz (PAL): 25fps (704*576, 640*480, 640*360) 60Hz (NTSC): 30fps (704*576, 640*480, 640*360) |
|
Third Stream |
N/A |
|
Video Stream Capability |
Dual streams |
|
Bit Rate Control |
CBR / VBR |
|
Video Bit Rate |
H.264: 192kbps ~ 8Mbps H.265: 224Kbps ~ 8Mbps |
|
Day / Night |
Auto (ICR) / Color / B&W |
|
BLC |
Support |
|
HLC |
Support |
|
WDR |
True WDR |
|
Scene Self-adaptation |
Support |
|
White Balance |
Auto, Custom, Locked, Incandescent lamp, Warm light, Natural light, Fluorescent lamp |
|
Gain Control |
Low, Mid low, Mid, Mid high, High |
|
Noise Reduction |
2D / 3D NR |
|
Motion Detection |
Smart / Ordinary (4 areas) |
|
Region of Interest (ROI) |
Support (4 areas, Level 1~6) |
|
Defog |
N/A |
|
Mirror |
Support |
|
Image Rotation |
0° / 90° / 180° / 270° / Horizontal / Vertical |
|
Privacy Masking |
4 areas |
|
Corridor Mode |
Support |
|
Digital Zoom |
Support |
|
Anti-flicker |
N/A |
AUDIO |
|
|
Built-in Mic S/N Ratio |
N/A |
|
Audio Compression |
G.711ulaw |
|
Environment Noise Filtering |
Support |
|
Audio Sampling Rate |
8 kHz / 16 kHz / 32 kHz / 44.1 kHz / 48 kHz |
|
Audio Bit Rate |
64 Kbps (G.711ulaw) |
INTELLIGENT VIDEO ANALYTICS |
|
|
IVA (Perimeter Protection) |
Target Count, Object Lost / Left, Line Crossing, Area detection, Smart Motion Detection (human and vehicle targets classification) |
|
Intelligent Search |
Embedded intelligent classification algorithm based on computer vision technology |
|
Intelligent Video |
Support fast retrieval by human & vehicle targets classification, playback and backup |
FACE DETECTION |
|
|
Face Templates |
N/A |
|
Face Quality Filtering |
N/A |
|
Face Detected Per Frame |
N/A |
|
Detection Area |
N/A |
|
Detected Face Size |
N/A |
|
Capture Response |
N/A |
ALARM |
|
|
Basic Alarm Event |
Network disconnection, IP conflict, Illegal access, Motion detection, Video tampering, External alarm |
|
Smart Alarm Event |
Target Count, Object Lost / Left, Line Crossing, Area detection, Smart Motion Detection (human and vehicle targets classification) |
|
Alarm Linkage Actions
|
Upload to memory card / FTP, notify surveillance center, trigger recording, trigger capture, send email |
NETWORK |
|
|
Simultaneous Live View |
Up to 15 channels |
|
Network |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
SDK and API |
Support SDK, API and ONVIF |
|
Cyber Security |
Video encryption; firmware encryption; configuration encryption; account lockout; security logs; IP filtering; trusted boot; trusted execution; trusted upgrade; password protection; complicated password; basic and digest authentication for HTTP / HTTPS; TLS; IP address filter; Security Audit Log |
|
Protocol |
TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTSP, NTP, UPnP, SMTP, IPv4, UDP, SSL / TLS, PPPoE, SNMP, WebSocket |
|
Interoperability |
ONVIF Profile S/T/G |
|
User / Host |
Up to 256 users can be added. 3 user levels: admin, operator and guest |
|
Network Storage |
FTP, Micro SD card, auto network replenishment (ANR) |
|
Web Browser |
IE / Edge / Firefox / Chrome / Safari |
|
Management Software (VMS) |
AntarVis 2.0 / ZKBioSecurity IVS / ZKBioAccess IVS / ZKBio CVSecurity / ZKBio CVAccess |
|
Mobile Application |
AntarView Pro+ (iOS & Android) |
|
On-Board Storage |
Micro-SD Card Slot (support max. 256GB) |
|
Operation System |
Windows |
|
P2P Cloud Service |
Support |
PORT |
|
|
Audio Input / Output |
1 (RCA port) / 1 (RCA port) |
|
Alarm Input |
2 (5 mA 3V–5 VDC each) |
|
Alarm Output |
1 (300 mA 12 VDC each) |
|
INTERFACE |
|
|
Reset Button |
Support |
|
ANR |
Support |
|
USB |
N/A |
|
RS485 |
Support |
POWER |
|
|
Power Supply |
PoE (IEEE802.3af,Class 3), DC 12V±10% reverse polarity protection |
|
Power Consumption
|
Basic ≦ 3W (12 VDC); 4.5 W (PoE) |
|
Power Interface |
Ø 5.5 mm coaxial power plug |
STRUCTURE |
|
|
Casing Material |
Aluminium Alloy |
|
Dimensions |
Φ102 * 93.3(mm) |
|
Net Weight |
0.50kg |
|
Gross Weight |
0.70kg |
ENVIRONMENTAL |
|
|
Operating Conditions |
–30 °C to +60 °C (–22 °F to +140 °F) / Humidity 95% or less (non-condensing) |
|
Storage Conditions |
–30 °C to +60 °C (–22 °F to +140 °F) / Humidity 95% or less (non-condensing) |
|
Protection Grade |
IP67, IK10 |
|
Certifications |
ISO9001; ISO14001; CE; FCC |
