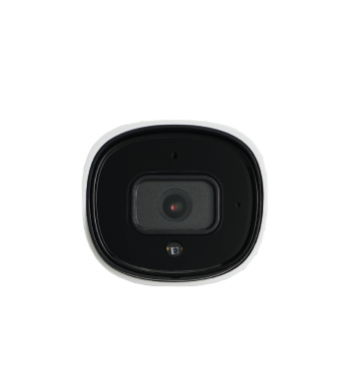

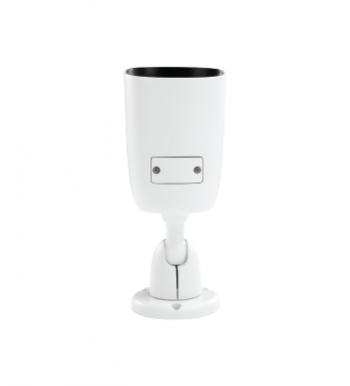

BS-852T22T-S6-MI-S

2MP BioSense Fixed Lens Bullet IP Camera

  • 1/2.8” 2MP STARVIS CMOS Sensor
  • H.265 triple stream encoding
  • High-quality optical lens: 3.6mm
  • IR light range 30m
  • Built-in PoE & Microphone
  • Built-in micro-SD card slot (support max. 256GB)
  • IP67 metal casing

BioSense Series IP Camera is the front-end of intelligent video surveillance solution released by ZKTeco based on the Deep-Learning  algorithm and Computer Vision technology.

By using advanced and powerful CPU,couple with the embedded intelligent classification algorithm based on computer vision  technology, the BioSense IP Cameras can accurately detect and recognize 3 key types of target: human, vehicles and objects,  meanwhile effectively filter out the other useless objects such as: animals, leaves, shadows, and rain, etc to reduce the false alarms, and  more focusing on the important alarms.

The BioSense IP Camera can greatly help to improve the efficiency and safety of the entire video surveillance system, can be widely used  in different scenario such as smart school, office, industrial park, community, public security, etc.

H.265 HEVC

  • H.265 is an evolutionary optimization of the traditional H.264, it includes a series of encoding strategy such as ROI, smart 2D/3D noise reduction, etc. Delivering high quality video with up to 70% lower bandwidth.

IVA (Intelligent Video Analytics)

  • The BioSense IP Cameras support multiple intelligent video analytic functions: Target Counting, Object Lost/Left, and the Line Crossing, Area detection, Smart Motion Detection supports human and vehicle targets classification.

True WDR

  • Powered by ZKTeco's powerful ISP algorithm and high quality sensor, the BioSense Series IP Cameras are built-in with true wide dynamic range feature, can present excellent picture images at extreme contrast lighting environment.

ANR (Only for SD card models)

  • While the connection lost between IPC and NVR, the video will be saved in SD card. The saved video will be auto replenished to NVR when network recovers to avoid any video lost.

Protection

  • With precise mechanical and rugged metal casing design, the BioSense Series IP Camers can stand against water and dust with industrial IP67 rank, and support to work at variety of harsh outdoor environments such as temperature range -30°C to +60 °C,etc.

Camera
Model BS-852T22T-S6-MI-S
Image Sensor 1/2.8” 2MP Sony STARVIS CMOS
Max.Resolution 1920(H)*1080(V)
ROM 128MB
RAM 256MB
Scanning System Progressive Scan
Electronic Shutter Speed 1/5 s to1/100,000 s
Min. Illumination [email protected] (AGC on, Color)
0 lux (IR on, B&W)
S/N Ratio >52dB
IR Range 30 m
Illuminator On/O Control Auto/Manual
Illuminator Number 2*IR LED
Smart IR Support
Angle Adjustment for Installation Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
TV System PAL/NTSC
Image Settings Trigger mode, Brightness, Contrast, Saturation, Hue, Sharpness, AGC, White balance, Gamma,
Backlight mode, adjustable by platform software or web browser
Software Reset Default Support
General Function Heartbeat, Mirror, Privacy mask, Log, Password reset

Lens
Lens Type Fixed Lens
Lens Mount M12
Mount Type Board-in
Focal Length 3.6mm
Max. Aperture F1.6
Optical Zoom N/A
Field of View FOV: 85°
Horizontal: 88°
Vertical: 45°
Diagonal:105°
Iris Type Fixed
Close Focus Distance 1.5 m
DORI Distance Lens Detect Observe Recognize Identify
3.6mm 50 m 19.6 m 10 m 4.3 m

Video
Video Compression H.265 / H.264
Resolution 1080P (1920*1080) / 1.3MP (1280*960) / 720P (1280*720) / D1 (704*576) / VGA (640*480) / Q720 (640*360)
Max Video Frame Rate Main stream: 50Hz (PAL): 25fps (1920*1080, 1280*960, 1280*720)
60Hz (NTSC): 30fps (1920*1080, 1280*960, 1280*720)
Sub stream: 50Hz (PAL): 25fps (704*576, 640*480, 640*360)
60Hz (NTSC): 30fps (704*576, 640*480, 640*360)
Third stream: 50Hz (PAL): 25fps (1920*1080, 1280*960, 1280*720, 704*576)
60Hz (NTSC): 30fps (1920*1080, 1280*960, 1280*720, 704*576)
 Video Stream Capability Triple streams
Bit Rate Control CBR / VBR
Video Bit Rate H.264: 896kbps–6Mbps
H.265: 1024Kbps ~ 6Mbps
Day/Night Auto (ICR) / Color / B&W
BLC Support
HLC Support
WDR True WDR
Scene Self-adaptation Support
White Balance Auto, Custom, Locked, Incandescent lamp, Warm light, Natural light, Fluorescent lamp
Gain Control Low, Mid low, Mid, Mid high, High
Noise Reduction 2D / 3D NR
Motion Detection Smart /Ordinary (4 areas)
Region of Interest (ROI) Support (4 areas, Level 1~6)
Defog N/A
Mirror Support
Image Rotation 0°/90°/180°/270°/Horizontal/Vertical
Privacy Masking 4 areas
Corridor Mode Support
Digital Zoom Support
Anti-flicker N/A

Audio
Built-in MIC Support
Audio Compression G.711ulaw
Environment Noise Filtering Support
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Bit Rate 64 Kbps (G.711ulaw)

Intelligent Video Analytics
IVA (Perimeter Protection) Target Count, Object Lost/Left,Line Crossing, Area detection, Smart Motion
Detection (human and vehicle targets classification)
Intelligent Search Embedded intelligent classification algorithm based on computer vision technology
Intelligent Video Support fast retrieval by human & vehicle targets classification, playback and backup

Face Detection
Face Templates N/A
Face Quality Filtering N/A
Face Detected Per Frame N/A
Detection Area N/A
Detected Face Size N/A
Capture Response N/A

Alarm
Basic Alarm Event SD card error, Network disconnection, IP conflict, Illegal access,
Motion detection, Video tampering, External alarm
Smart Alarm Event Target Count, Object Lost/left, Line Crossing, Area detection,
Smart Motion Dection (human and vehicle targets classification)
Alarm Linkage Actions Upload to memory card/FTP, notify surveillance center, trigger
recording, trigger capture, send email

Network
Simultaneous Live View Up to 15 channels
Network 1 RJ45 10 M/100 M self-adaptive Ethernet port
SDK and API Support SDK, API and ONVIF
Cyber Security Video encryption; firmware encryption; configuration encryption; account lockout;
securitylogs; lP filtering; trusted boot; trusted execution; trusted upgrade; password
protection;complicated password; basic and digest authentication for HTTP/HTTPS, TLS;
IP address filter; Security Audit Log
Protocol TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTSP, NTP, UPnP, SMTP, IPv4,
UDP, SSL/TLS, PPPoE, SNMP, WebSocket
Interoperability ONVIF Profile S/T/G
User/Host Up to 256 users can be added. 3 user levels: admin, operator and guest
Network Storage FTP
Web Browser IE / Edge /Firefox / Chrome / Safari
Management Software AntarVis 2.0/ZKBioSecurity IVS/ZKBioAccess IVS/ZKBio CVSecurity/ZKBio CVAccess
Mobile Application AntarView Pro+ (iOS & Android)
On-Board Storage Micro-SD card slot (support max. 256GB)
Operation System
Operation System Windows
P2P Cloud Service Support

Port
Audio Input N/A
Audio Output N/A
Alarm Input N/A
Alarm Output N/A

Interface
Reset Button Support
ANR Support
USB N/A
RS485 N/A

Power
Power Supply PoE (IEEE802.3af,Class 3), DC 12V±10% reverse polarity protection
Power Consumption Basic ≤3W (12 VDC); 4.5 W (PoE)
Power Interface Ø 5.5 mm coaxial power plug

Structure
Casing Material Aluminium Alloy
Dimensions 180.80 * 75.30 * 66.20(mm)
Net Weight 0.40kg
Gross Weight 0.52kg

Environment
Operating Conditions –30 °C to +60 °C (–22 °F to +140 °F)/ Humidity 95% or less (non-condensing)
Storage Conditions –30 °C to +60 °C (–22 °F to +140 °F) /Humidity 95% or less (non-condensing)
Ingress Protection Rating IP67

Certifications
Certificates ISO9001, ISO14001, CE, FCC
