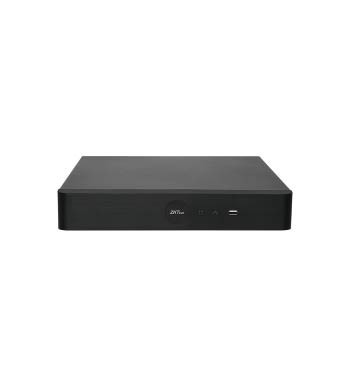

Z8516NFR-16P-S

H.265+ 16 Channels BioSense Network Video Recorder with 16 PoE

  • H.265+/H.265/H.264 decoding
  • Support 16-channel IP cameras input & preview
  • 16 channels realtime playback synchronously
  • HDMI output up to 4K UHD
  • Support multiple web browsers login
  • Pair with Biosense IP cameras to form a video surveillance system with multiple intelligent analytics
  • P2P cloud service supported

BioSense Series Network Video Recorder (NVR) is the back-end storage device of the new intelligent video surveillance solution released by ZKTeco based on the Deep-Learning algorithm and Computer Vision technology.

Embedded with advanced and powerful CPU hardware, and ZKTeco's graphical operation system, the BioSense Series Network Video Recorders are the ideal couple for the front-end BioSense Series IP Cameras. The NVR can support 24/7 continuously recording all video and intelligent alarm events generated by the front-end IP Cameras, and store safely  into hard drive by human & vehicle classification. After recording the video and intelligent alarm events, the NVR can allow the user to efficiently retrieve and playback the target video evidence, especially for the key types of targets such as humans, vehicles, and objects. This function enables the user to focus on the most effective video clips and alarm  events.

The BioSense Network Video Recorders can greatly help to improve the efficiency and safety of the entire video  surveillance system, can be widely used in different scenario such as smart school, office, industrial park, community,  public security, etc.

H.265+ HEVC

  • H.265+ is an evolutionary optimization of the traditional H.264, it includes a series of encoding strategy such as ROI, smart 2D/3D noise reduction, etc. Delivering high quality video with up to 75% lower bandwidth.

IVA (Intelligent Video Analytics)

  • BioSense Network Video Recorders support multiple intelligent video analytic functions couple with the BioSense IP Cameras, such as: Target Counting, Object Lost/Left, and the Line Crossing, Area detection, Smart Motion Detection base on human and vehicle targets classification.

Smart Retrieval

  • BioSense Network Video Recorders support smart retrieval for video and alarm events by human & vehicle classification, enable user to efficiently search out the targeting video clips and alarm events.

ANR (Only for SD card IPC models)

  • While the connection between IPC and NVR is lost, the system will save the video in the SD card. The saved video will be auto-replenished to NVR when the network recovers to avoid any video loss.

Alarm Push Notification

  • Alarm events received by the NVR can trigger linkage actions such as sending emails, playing audio, sounding a buzzer, and displaying an alarm message on the mobile app. These actions can be pushed in real-time to a mobile app or a management platform software.
Model Z8516NFR-16P-S

SYSTEM

Main Processor Multi-core embedded processor
Operating System Embedded LINUX
Operation Interface Web browser & Local GUI

VIDEO AND AUDIO

Max IPC Video Input 16CH
Two-way Talk Support
Audio Compression G.711u
Max Audio Input 16CH by IPC

Third Party Camera Access

ONVIF & RTSP

LIVE VIEW

Display Split

1 / 4 / 6 / 9 / 16 CH

Resolution

8MP(3840*2160) / 5MP(2592*1944) / 2MP(1920*1080) / 1.3MP(1280*1024) / 1Mp(1280*720) / D1(1024*768)

Live View Capability

16CH@5MP(25/30fps)

RECORDING

Video Compression

H.265+ /H.265 / H.264

Recording Resolution



8MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P / D1

Max. Decoding Capability

4CH@5MP(25/30fps)/16CH@D1(25/30fps)

Incoming Bandwidth

80 Mbps

Outgoing Bandwidth



80 Mbps

Stream Type

Video, Video & Audio

Bit Rate

Main Stream: 256Kbps ~ 8192Kbps
Sub Stream: 50Kbps ~ 700Kbps

Storage Method



Local hard drive and network

Record Mode

Schedule, Manual, Motion Detection, IVA Events Alarm

Record Interval

1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

PLAYBACK AND BACKUP

Playback Channel

16CH synchronously playback

Search Mode

Time / Date, Alarm Types, IVA Search

Playback Function

Play, Stop, Play Forward, Play Backward, 30 Seconds Forward, 30 Seconds Backward, Fast Play, Slow Play, Single Frame Play, Hide/Show Time Bar, Backup, Snapshot, Full Screen

Backup Mode

USB Device / Network Remote

INTELLIGENT VIDEO ANALYTICS

IVA by Camera

Line Crossing, Area Detection, Smart Motion Detection (base on human and vehicle classification), Target Counting, Object Lost / Left

Local IVA Functions displaying

Line Crossing, Area Detection, Smart Motion Detection (base on human and vehicle classification), Target Counting, Counting Statistics, Object Lost / Left

IVA by Device(Number of Channels)

Up to IPC

IVA by Camera (Number of Channels)

16

IVA ALARM

Smart IVA Alarm

Line Crossing, Area Detection, Smart Motion Detection (base on human and vehicle classification), Target Counting, Counting Statistics, Object Lost / Left

Regular Detection

Motion Detection / Video Shelter / Video Loss

Anomaly Alarm

HDD Full, No HDD, S.M.A.R.T error, Network disconnected, IP conflict

Alarm Linkage Actions

Preview, Recording, Snapshot,Buzzer, Preset, Email, Tour, Upload center

Smart Search

Support smart search out target video by human and vehicle classification filtering

NETWORK

Network Protocol

TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTSP, NTP, UPnP, SMTP, IPv4, UDP, SSL / TLS, PPPoE, SNMP, WebSocket, P2P

Max. Online Users

5

Web Browser

Google Chrome / Microsoft Edge / Firefox / Safari / Opera

Operation System

Windows

Management Platform



ZKBio CVSecurity / ZKBio Access IVS / AntarVis 2.0

Mobile Application

AntarView Pro+ (iOS & Android)

P2P Cloud Service

Support

Interoperability

ONVIF Profile S/G, SDK, CGI, API

STORAGE & AUXILIARY INTERFACE

SATA Ports

2 SATA Port, up to 8 TB capacity each

eSATA

N/A

Raid 0 /1 / 5 / 6 / 10

N/A

HDMI

1*HDMI (4K)

VGA

1*VGA(1920*1080/60Hz, 1280*1024/60Hz)

Network Interface

1 RJ-45 Port (10/100/1000Mbps)

PoE Ports

16 PoE, 10/100 Mbps self adaptive

Standard

IEEE802.3af / at sefl adaptive

USB

3*USB 2.0

Audio Input/Output

1/1

Alarm Input/Output

N/A

RS-485

Support

RS-232

N/A

POWER

Power Supply

DC 52V/4.6A

Power Consumption

NVR: 20W (without HDD)
PoE ports: 15W for each output up to 250m transmission

GENERAL

Casing

1.5U

Operating Temperature



-10°C to 55°C / 14°F to 131°F

Operating Humidity

0% to 90% RH (Non-condensing)

Storage Humidity

30% to 80% RH (Non-condensing)

Operating Altitude

3,000 m (9,842.52 ft)

Installation

Desktop / Cabinet mount

Dimensions(L*W*H)

325 * 246 * 50 (mm)

Net Weight

3kg (without HDD)

Gross Weight

3.5kg (without HDD)

Certifications

ISO9001, ISO14001, CE, FCC
