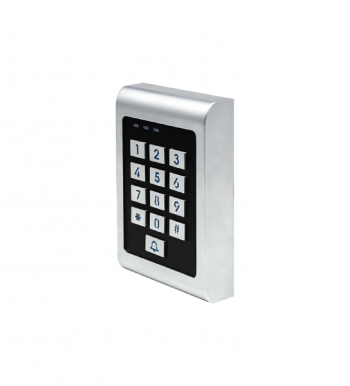

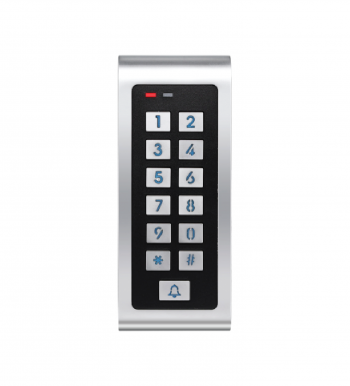

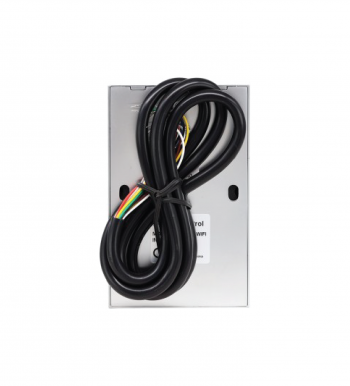

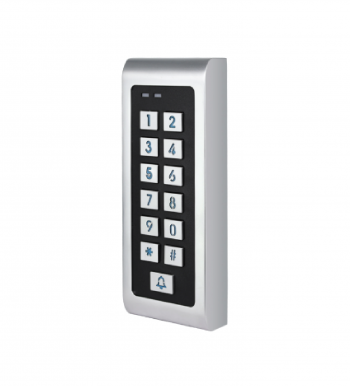

ZKTeco’s MK2-V and MK2-H are standalone RFID access control terminals featuring zinc alloy metal chassis for enhanced protection and robustness. Each model brings enhanced security to the forefront with dual authentication methods, allowing both RFID verification and custom PIN code entry. MK2-V and MK2-H also offer versatile Wiegand connectivity that can adapt to your system requirements.
Bi-directional Entry and Exit Verification (Primary Control Mode):
The MK2-V and MK2-H feature dual-role Wiegand connectivity that allow them to function as primary controllers (via Wiegand Input) managing multiple secondary readers to enable comprehensive bi-directional entry and exit verification.
RFID Standalone Reader (Secondary Reader Mode):
The MK2-V and MK2-H operates as a smart secondary RFID reader (via Wiegand Output), that seamlessly integrates with existing access control systems and controllers. In this configuration, MK2-V and MK2-H offer standalone capabilities while feeding data to your primary access control system, providing flexible expansion without replacing existing infrastructure.
Above all, MK2-V and MK2-H is built with Zinc Alloy and achieved the IP66 protection rating for water-resistant and dustproof, making them ideal solutions for indoor and outdoor applications.
| Model | MK2-H & MK2-V |
| Display | N/A |
| Authentication Method | Card / PIN Code (Physical Keypad) |
| User Capacity | 10,000 (1:N) (Standard) |
| Card Capacity | 10,000 (1:N) (Standard) |
| Transaction Capacity | N/A |
| Max. User Password Length | 4 to 6 Digits |
| Card Type | ID Card @ 125kHz (Standard) IC Card @ 13.56MHz (Optional) |
| Communication | Wiegand Input*1 & Wiegand Output*1 Electric Lock*1, Door Sensor*1, Exit Button*1, Doorbell*1,Alarm*1 |
| Standard Functions | Access Control, Buzzer, Multiple Verification Methods, LED status indicators: Green: Verification successful (1 Beep) Solid Red: Verification Failed (3 Beeps) Orange: Configuration Solid Red: Standyby Rapid Red Flash: Alarm (Audible alert) Operation Error: 3 Beeps |
| Optional Functions | N/A |
| Power Supply | DC 12V 0.15A |
| Operating Temperature | -40°C to 60°C |
| Operating Humidity | 10% to 90% RH (Non-condensing) |
| Dimensions | MK2-H: 117mm * 70mm * 22mm (L*W*H) MK2-V: 132mm * 55mm * 25mm (L*W*H) |
| Gross Weight | MK2-H: 0.361 Kg MK2-V: 0.333 Kg |
| Net Weight | MK2-H: 0.302 Kg MK2-V: 0.283 Kg |
| Supported Software | N/A |
| Installation | Wall-mount |
| Ingress Protection Rating | IP66 (waterproof and dustproof ) |
| Certifications | ISO14001, ISO9001, CE, RoHS |
